How to Manufacture a Menstrual Cup

In recent years, Menstrual Cups have emerged as a sustainable, cost-effective, and body-safe alternative to traditional menstrual products like pads and tampons. As demand surges globally, understanding the intricate manufacturing process behind these medical-grade devices becomes crucial for entrepreneurs, consumers, and industry professionals alike. This guide breaks down every stage of menstrual cup production, from material selection to quality control, ensuring you gain a deep understanding of what goes into creating a safe, functional, and reliable product.

1. Raw Material Selection: The Foundation of Safety

The first and most critical step in manufacturing a menstrual cup is choosing the right raw materials. Since these devices come into direct contact with sensitive vaginal tissue for extended periods, only medical-grade materials are acceptable. The most common options include:

• Medical-Grade Silicone: The gold standard for menstrual cups, medical silicone is hypoallergenic, heat-resistant, and biocompatible. It undergoes rigorous testing to ensure it contains no phthalates, BPA, or other harmful chemicals. Manufacturers source it in liquid form, often from specialized suppliers certified by regulatory bodies like the FDA or CE.
• Natural Rubber Latex: While less common due to latex allergies, some brands use natural rubber for its elasticity. However, this requires strict allergen labeling and additional processing to remove proteins that trigger reactions.
• Thermoplastic Elastomers (TPE): A synthetic alternative to silicone, TPE offers similar flexibility but must meet the same medical standards. It is sometimes chosen for cost reasons but requires careful formulation to ensure durability.

Raw materials are subjected to batch testing for purity and compliance with ISO 10993 (biological evaluation of medical devices) before production begins.

2. Design Engineering: Balancing Function and Comfort

Menstrual Cup Design is a blend of ergonomics, anatomy, and user experience. Engineers collaborate with gynecologists and product designers to create a shape that:

• Fits comfortably inside the vaginal canal without leakage
• Allows easy insertion and removal
• Holds an adequate volume (typically 15-30ml)
• Resists tearing or degradation over time

Key design elements include:

• Rim Shape: A soft, rounded rim ensures a secure seal without discomfort. Some cups feature a flared rim for better grip during removal.
• Body Design: Conical or cylindrical shapes with varying thicknesses to balance flexibility and rigidity.
• Stem/Handle: A small protrusion at the base to aid removal, available in styles like loops, balls, or short stems.

Prototypes are 3D-printed or handcrafted from clay for initial testing. Feedback from focus groups—including users of different ages, body types, and menstrual flows—refines the design before mass production.

3. Mold Creation: Precision is Paramount

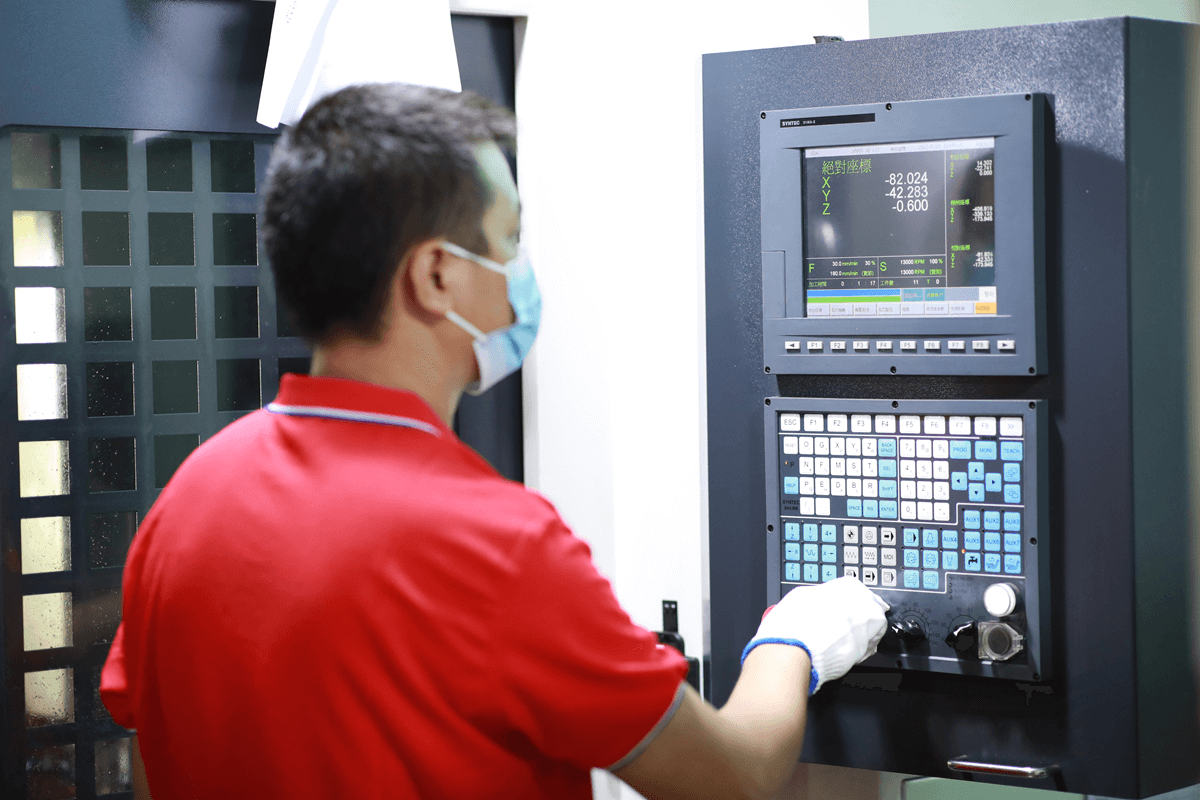

Once the design is finalized, manufacturers create custom molds, usually from stainless steel or aluminum, using computer-aided design (CAD) and computer numerical control (CNC) machining. Molds must be:

• Dimensionally Accurate: Tolerances as tight as ±0.1mm ensure consistent sizing across batches.
• Smooth: A polished interior prevents surface imperfections on the final product, which could harbor bacteria.
• Heat-Resistant: Molds must withstand the high temperatures of the curing process (up to 200°C for silicone).

Each mold produces one cup, and a single production line may use dozens of molds to meet volume demands. Molds are regularly inspected for wear and damage to maintain quality.

4. Production Process: From Liquid to Solid

The manufacturing method depends on the material, but silicone cups follow a standardized process:

• Mixing: Liquid silicone is combined with catalysts and colorants (if used) in a vacuum mixer to eliminate air bubbles, which could weaken the cup or trap bacteria.
• Casting: The silicone mixture is poured into preheated molds, which are then clamped shut. For larger production runs, automated machines handle this step to ensure uniform filling.
• Curing: Molds are baked in industrial ovens at controlled temperatures (150-200°C) for 10-30 minutes. This chemical reaction transforms the liquid into a solid, flexible material.

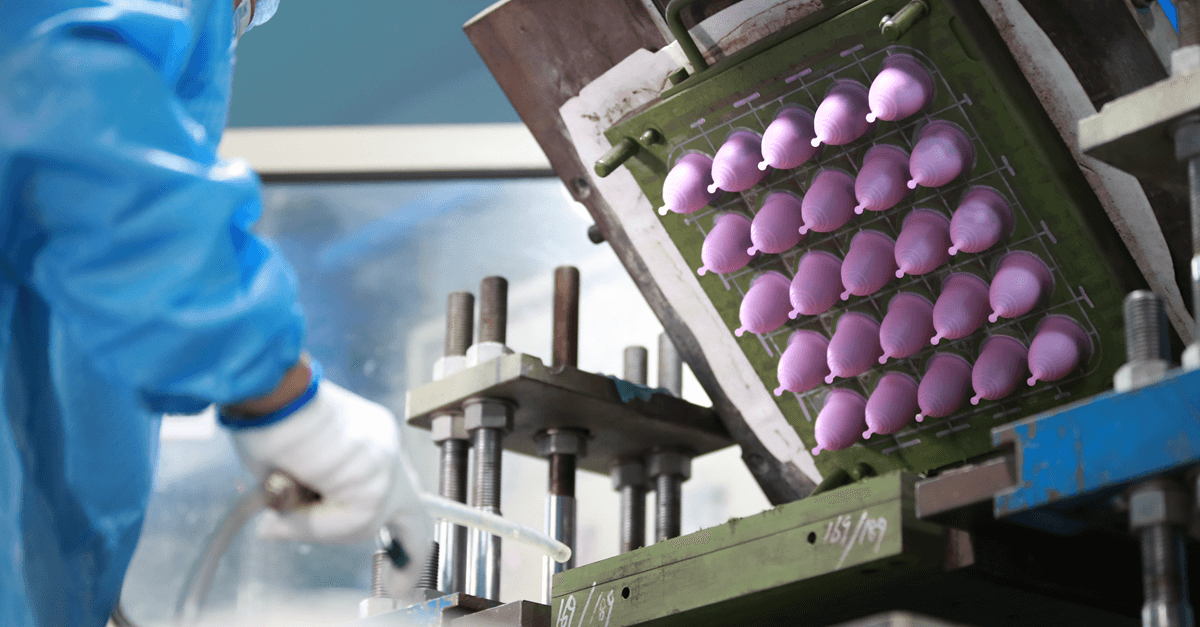

• Demolding: Once cured, cups are carefully removed from molds. Excess material (flash) around the rim is trimmed away using precision tools.
• Polishing: The surface is buffed to remove any remaining imperfections, creating a smooth, non-porous finish that resists bacterial growth.

For latex cups, the process involves dipping molds into liquid latex, drying, and vulcanizing (heating to cross-link polymers). TPE cups use injection molding, where molten material is forced into molds under high pressure.

5. Quality Control: Ensuring Safety and Performance

Stringent quality checks are conducted at every stage to meet global regulations (FDA, CE, ISO 13485):

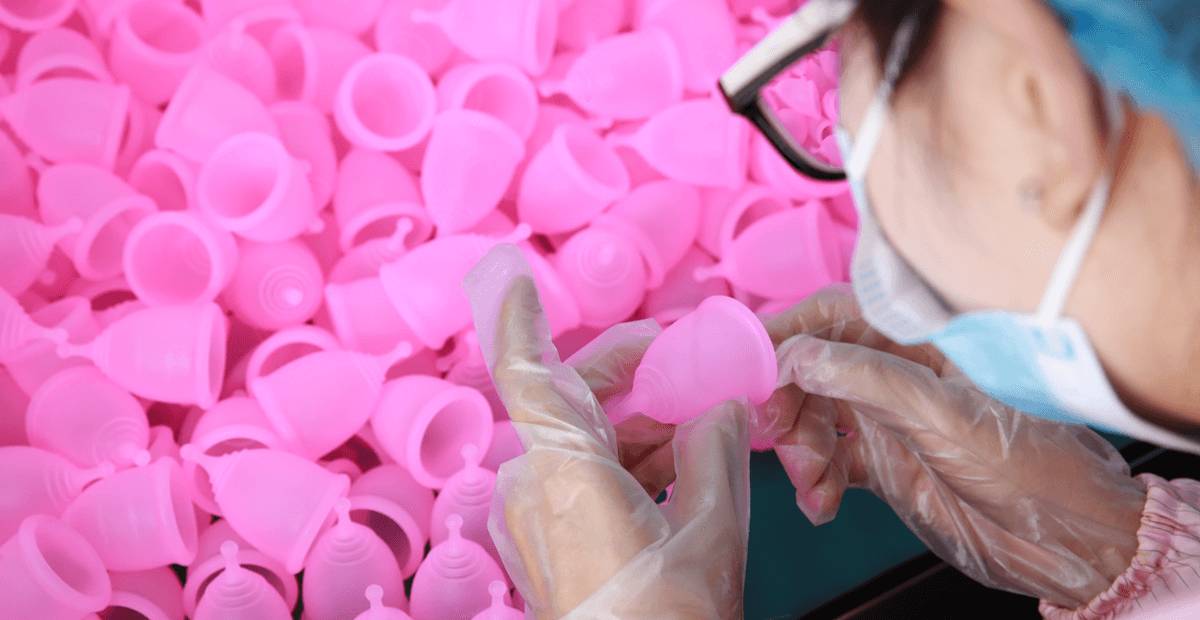

• Visual Inspection: Cups are checked for cracks, discoloration, or uneven surfaces. Automated systems with cameras can detect defects invisible to the naked eye.
• Dimensional Testing: Samples from each batch are measured to ensure they match design specifications.
• Leak Testing: Cups are filled with water to verify the seal holds, simulating real-world use.
• Biocompatibility Testing: Extractables and leachables tests ensure no harmful substances migrate from the cup into the body.
• Durability Testing: Cups are subjected to repeated flexing and temperature cycles to mimic years of use, ensuring they don’t tear or degrade.

Failed products are discarded, and batches with consistent issues are recalled for root-cause analysis.

6. Sterilization and Packaging: Ready for Market

Before packaging, menstrual cups undergo sterilization to eliminate any residual bacteria. Common methods include:

• Ethylene Oxide (EtO) Gas: Effective for heat-sensitive materials, though it requires aeration to remove toxic residues.
• Gamma Irradiation: A high-energy process that sterilizes without leaving chemical traces, ideal for silicone.
• Autoclaving: Steam sterilization at high pressure, suitable for heat-resistant materials.

Cups are then packaged in sterile, recyclable materials—often paper or biodegradable plastic—with clear instructions for use and cleaning. Many brands include a storage pouch for hygienic transport.

7. Compliance and Certification: Meeting Global Standards

To sell in international markets, manufacturers must obtain certifications:

• FDA Registration: Required for sale in the U.S., involving submission of clinical data and manufacturing protocols.
• CE Marking: Mandatory in the EU, indicating compliance with medical device directives.
• ISO 13485: A quality management system certification specific to medical devices, ensuring consistent production standards.

Regulatory bodies conduct periodic audits to verify ongoing compliance, making documentation of every production step essential.

8. Sustainability in Manufacturing

As eco-conscious consumers drive demand, manufacturers are adopting green practices:

• Waste Reduction: Excess silicone is recycled into other products, and water used in cooling molds is treated and reused.
• Energy Efficiency: Ovens and machinery are powered by renewable energy sources where possible.
• Eco-Friendly Packaging: Minimal, recyclable, or biodegradable materials reduce the product’s carbon footprint.

Conclusion: Crafting a Product You Can Trust

Manufacturing a menstrual cup is a precision process that combines medical science, engineering, and regulatory compliance. From selecting medical-grade materials to rigorous testing, every step is designed to prioritize user safety, comfort, and sustainability. As the menstrual cup market continues to grow, understanding this process empowers consumers to make informed choices and entrepreneurs to develop products that meet the highest standards.

Whether you’re a brand looking to enter the market or a user curious about what goes into your menstrual care, recognizing the complexity behind these small but impactful devices highlights their value as a safe, eco-friendly alternative.
